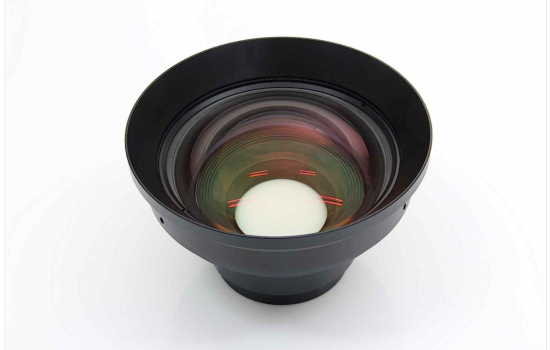

70° Collimator Lens for Medium Field of View
OSCL736C

The OSCL736C Collimator Lens is for 70° Field of View or less.

Details

The OSCL736C Collimator Lens for 70° Field of View or less.
•Lens Composition: 5 Glass Lenses ( 2 HRI Glass )
•EFL: 415.1mm
•Inspectable FOV of CCM: 70 degrees
•Inspectable Resolution of CCM: ~ 20Mega Camera Lens
•Ass'y Size: Ф 190.8mm X L 128mm , 3.48kg
•Exit Pupil Size: Φ15.0mm
•Exit Pupil Position: 35.6mm (from vertex C/L to CCM)
•Working Distance (from C/L 1st Lens R1 surface to chart):

263.5mm at Object Distance Infinity
193.5mm at Object Distance 2.0m
145.5mm at Object Distance 1.0m


Object Distance (mm)
Working Distance  Chart Size (Ф, mm)
Infinity 263.5 586.4
50000 260.1 581.1
30000 257.8 577.6
10000 247 560.7
5000 231.9 537.1
4500 228.7 532.1
4000 224.9 526.1
3500 220 518.4
3000 213.7 508.6
2500 205.3 495.5
2000 193.5 477
1900 190.5 472.4
1800 187.3 467.3
1700 183.7 461.8
1600 179.9 455.8
1500 175.6 449.1
1400 170.9 441.7
1300 165.6 433.5
1200 159.7 424.3
1100 153.1 413.9
1000 145.5 402.1
900 136.9 388.5
800 126.8 372.8
700 115 354.4
600 101 332.6
500 84.1 306.2
450 74.3 290.8
400 63.3 273.6
