120° Collimator Lens for Wide Field of View

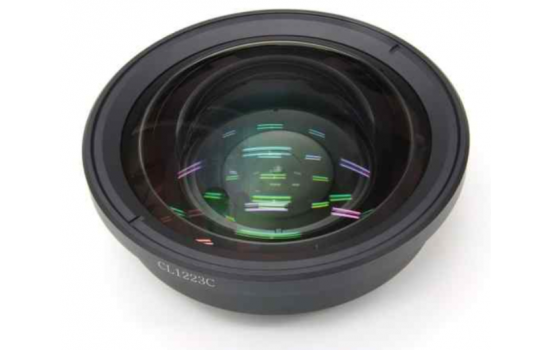

OSCL1223C-Main

The OSCL1223 Collimator Lens is for 120° Wide Field of View

Sub-Lens (Select one or multiple)

4000mm to infinite virtual distance
3000mm to 1300mm virtual distance
1200mm to 800mm virtual distance
600mm to 700mm virtual distance
500mm virtual distance
350mm to 400mm virtual distance

Details

The OSCL1223C Collimator Lens for 120° Wide Field of View
•Requires Sub-lens
•EFL: 350.1mm
•Inspectable FOV of CCM: 120°
•Assemblyy Size: Ф 190mm X L 83.92mm
•Exit Pupil Size: Φ4.5mm (Distance from camera lens to CL)
•Exit Pupil Position: 23.0mm at Object Distance infinity
•Working Distance (from CL 1st lens R1 surface to chart): 248.2mm
•Chart size: Φ1225.2mm

Object Distance (mm) Sub Lens Working Distance Chart Size (Ф, mm)
Infinity 0.0D 248.15 1225.2
10000 0.0D 236.34 1179.2
8000 0.0D 233.53 1168.2
4500 0.0D 233.04 1127.3
4000 0.0D 220.07 1116.1
3000 0.5D 220.11 1120.4
2500 0.5D 213.4 1094.1
2000 0.5D 203.88 1056.8
1900 0.5D 201.48 1047.4
1800 0.5D 198.86 1037.2
1700 0.5D 195.99 1025.9
1600 0.5D 192.83 1013.6
1500 0.5D 189.34 999.9
1400 0.5D 185.47 984.7
1300 0.5D 181.14 967.7
1200 1.0D 181.57 971.5
1100 1.0D 175.76 948.7
1000 1.0D 169.12 922.6
900 1.0D 161.48 892.6
800 1.0D 152.58 857.7
700 1.5D 145.86 832.6
600 1.5D 132.75 781.1
500 2.0D 117.58 727.2
400 2.5D 99.97 659.7
350 2.5D 87.61 610.5
