180° Target Projection Collimator Lens System for Ultra Wide FoV
OSCS-180-V1

The OSCS-180V1-SFRreg Ultra Wide Collimator System includes 4x CM-10120 target projectors with 10° FoV and SFRreg 10:1 contrast ratio high-precision chrome on glass reticles and PD-FN300(RC)-4CH LED Controller.

Sub-Lens (Select one or multiple)

4000mm to infinite virtual distance
3000mm to 1300mm virtual distance
1200mm to 800mm virtual distance
600mm to 700mm virtual distance
500mm virtual distance
350mm to 400mm virtual distance

Details

The OSCS-180V1-SFRreg Ultra Wide Collimator System includes:
•120° collimating conversion lens (also requires sub lens and chart, see below table)
•Target projectors with 10° FoV and SFRreg 10:1 contrast ratio high-precision chrome on glass reticles and white LED Controller.

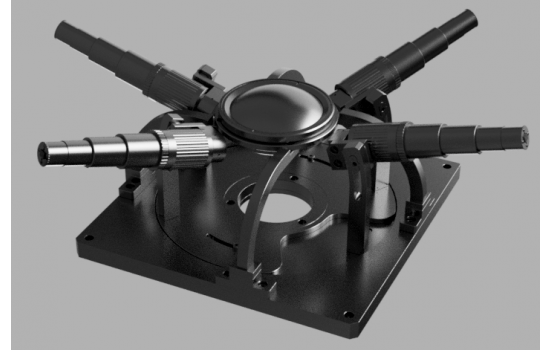

•Base alignment assembly (pictured)

Object Distance (mm) Sub Lens Working Distance Chart Size (Ф, mm)
Infinity 0.0D 248.15 1225.2
10000 0.0D 236.34 1179.2
8000 0.0D 233.53 1168.2
4500 0.0D 233.04 1127.3
4000 0.0D 220.07 1116.1
3000 0.5D 220.11 1120.4
2500 0.5D 213.4 1094.1
2000 0.5D 203.88 1056.8
1900 0.5D 201.48 1047.4
1800 0.5D 198.86 1037.2
1700 0.5D 195.99 1025.9
1600 0.5D 192.83 1013.6
1500 0.5D 189.34 999.9
1400 0.5D 185.47 984.7
1300 0.5D 181.14 967.7
1200 1.0D 181.57 971.5
1100 1.0D 175.76 948.7
1000 1.0D 169.12 922.6
900 1.0D 161.48 892.6
800 1.0D 152.58 857.7
700 1.5D 145.86 832.6
600 1.5D 132.75 781.1
500 2.0D 117.58 727.2
400 2.5D 99.97 659.7
350 2.5D 87.61 610.5
